Seawall crack and panel repair in Punta Gorda
A cracked cap, a gap opening between panels or a hole in the lawn behind the wall are early signs. Caught early, most of them are a repair, not a new wall. Send us what you see and local marine contractors quote the fix.
Free to ask. We are a referral service, not a contractor.
How a canal seawall fails
A typical concrete canal seawall is a row of panels set into the canal bottom, tied together along the top by a poured concrete cap. Steel tie-back rods run from the cap to anchors buried in the yard, and fabric behind the joints holds the soil in. Repairs follow the part that failed:
- The cap cracks and spalls as the steel inside it rusts, or pulls away when the panels below move.
- Panel joints open up, and soil washes out through them with every tide.
- The soil behind the wall drains away into the canal, leaving a void that shows up later as a sinking patch or a hole in the yard.
- Tie-backs and anchors corrode or lose their grip, and the wall starts to lean toward the water.
- The toe of the wall gets scoured by wakes and current until the base is undermined.
Walls vary. Vinyl, composite, steel and older walls are built differently, and a contractor will tell you what yours is made of on the site visit.
Signs to look for
Walk the wall at low tide, when more of the face shows. Look at the cap from above, the face from the dock or a boat, and the lawn within a few feet of the cap. Take photos of anything below as you go.
Cracks in the cap. Hairline cracks are common. Wide cracks, rust stains, loose chunks or a cap that has shifted off the panels below mean water and steel are working on it. Measure the widest crack and photograph it next to a coin.
Gaps at the joints. Light showing between panels, a joint you can push a finger into, or one panel standing proud of the next are signs the joint has opened. Look for soil stains on the face below it.
Holes behind the wall. A dip in the lawn, pavers settling, or a hole that keeps coming back after you fill it usually means soil is leaving through the wall. This tends to get worse quickly, so it's the one to report first.
Lean or bulge. Sight along the cap from one end. A wall that bows toward the water, or a cap that tilts, can point to tie-back or anchor trouble. That is a structural question for a contractor, and sometimes the start of a replacement.
What a repair quote can include
A contractor looks at the cap, the joints, the yard and the toe before pricing anything. Expect the quote to name the method, the length of wall it covers, who pulls the permits, and how long the work takes.
When panels have failed in several places, the wall leans, or the same repair keeps coming back, ask for a replacement price alongside the repair so you can compare.
Repairs to the wall
- Sealing cracks and opened panel jointssoil washing through
- Replacing failed fabric behind joints and refilling voidssinking yard, holes behind the cap
- New tie-back rods and anchorswall moving or leaning out
- Batter piles or king pilesbracing a wall that leans
Related work
- Cap repair or a new capcracked or spalling cap

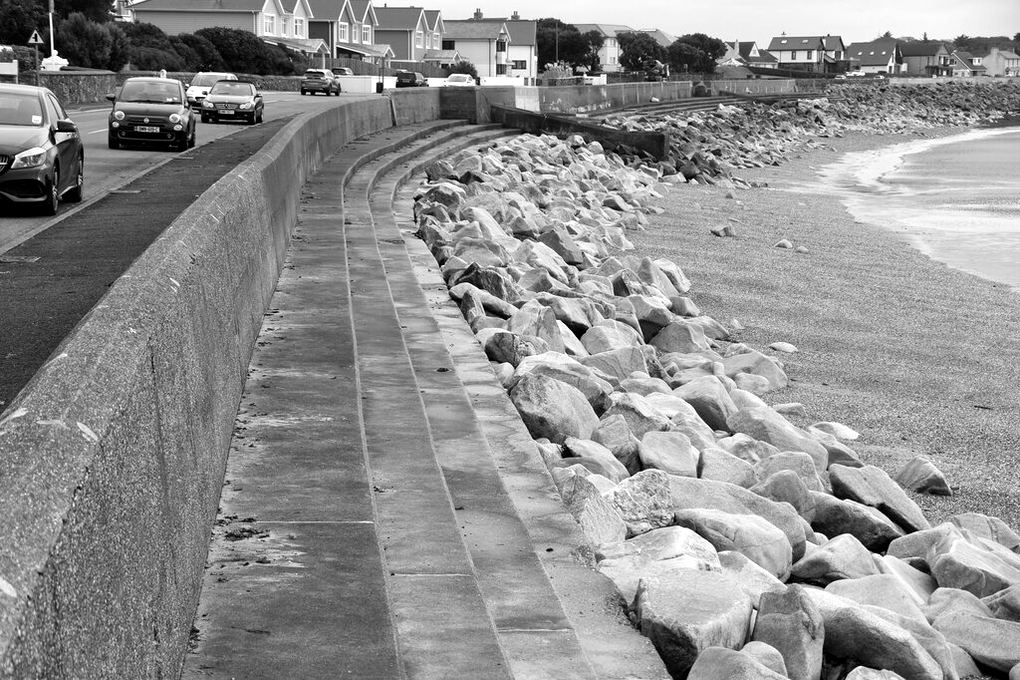

- Riprap at the toescour under the base
- Seawall replacementwhen repair stops making sense
Methods differ between contractors and wall types. These are the kinds of work you'll see named on repair quotes, not a promise of what your wall needs.
What to have ready
None of this is required to ask for a quote. Each item saves a phone call and gets you a firmer number from the site visit.
If your home is in Punta Gorda Isles or Burnt Store Isles, add one step: ask the City whether your wall is in its canal maintenance program. If it is, the City's work and schedule come first.
Before the site visit
About the property
- Street address and canalneeded
- Rough length of wallin feet
- Wall materialif known
- Survey or platif you have one
About the damage
- Photos at low tidecap, face, yard
- When you first noticed itmonth, year
- Storm damage?which storm
- City or HOA lettersif any
Ready to request quotesabout 3 minutes
Permits for seawall repair
Repair work in Charlotte County usually needs the county's residential seawall permit, and state rules decide whether an FDEP permit is needed or the job is exempt. Ask the contractor who pulls each permit, and to name them in the quote.
County permit. Charlotte County's residential seawall permit asks for a plan that meets county code, plus any FDEP or Army Corps approvals when the wall is over state or federal waters. It becomes void if work hasn't started within 180 days.
FDEP exemptions. Florida rule 62-330.051(12)(a) exempts repairing seawalls or riprap in man-made waterways, and (12)(d) covers batter piles, king piles or a cap used only to stabilize and repair a wall, if they don't impede navigation. Each has conditions; confirm with FDEP's district office.
After a storm. Rule 62-330.051(12)(b) covers restoring a seawall or riprap damaged by a discrete event within the last year, no more than 18 inches waterward of where it stood. Get quotes before that year runs out.
Army Corps and the City. An Army Corps permit may be needed where the work is in navigable or federal waters. In Punta Gorda, check the City's canal program before any of this: if your wall is in it, talk to the City before you hire anyone.
Seawall repair questions
Can a cracked seawall cap be repaired, or does the whole wall need replacing? Often the cap can be repaired or a new cap poured over sound panels. A contractor checks the panels, joints and tie-backs first, because a cap that cracked from a moving wall will crack again. See seawall cap repair.
What causes a sinkhole behind a seawall? Usually soil washing out through an opened panel joint or failed fabric behind it. The void grows under the lawn before the surface drops, so a hole that keeps coming back is worth reporting early.
Do I need a permit to repair my seawall in Charlotte County? Plan on it unless your contractor confirms otherwise. The county's residential seawall permit needs a plan that meets county code, plus FDEP or Army Corps approvals where the work is over state or federal waters. It is void if work doesn't start within 180 days.
Is seawall repair exempt from FDEP permits? Often, with conditions. Rule 62-330.051(12)(a) exempts repairing seawalls in man-made waterways, and (12)(d) covers batter piles, king piles or a cap used only to stabilize and repair a wall. Confirm with FDEP's district office or your contractor.
My home is on a Punta Gorda canal. Who pays for the repair? The City of Punta Gorda maintains canal seawalls under its canal maintenance program. Ask Public Works whether your stretch of wall is included before paying for a repair yourself.
How soon should I act after storm damage? Within the year. Rule 62-330.051(12)(b) covers restoring a wall damaged by a discrete event within the last year, no more than 18 inches waterward of the old wall.
How much does seawall repair cost? We haven't found published local figures for repairs; they depend on the method and the length of wall involved. For full replacement, a local contractor told WGCU in 2023 that a typical concrete wall ran from the high $40,000s to about $50,000.
